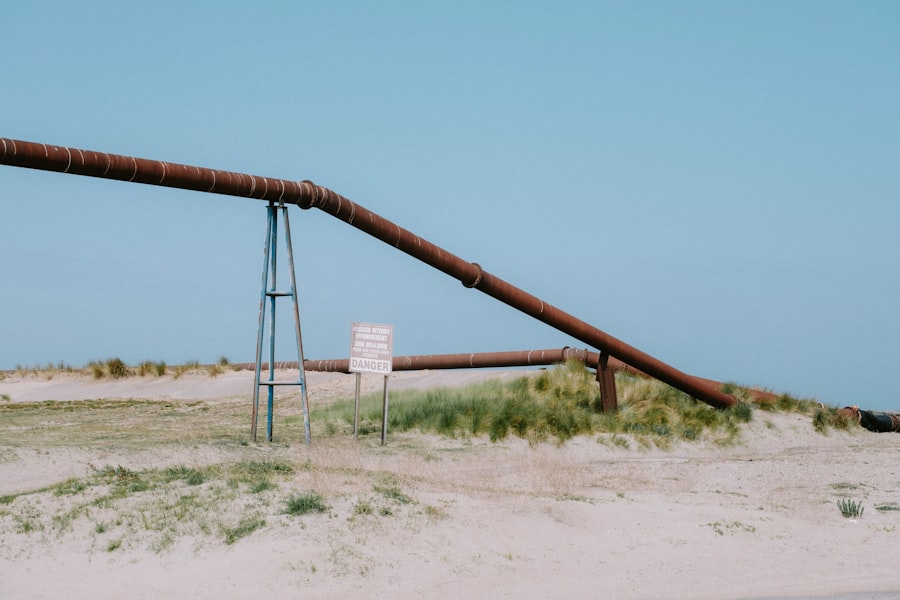

Demystifying North Sea Pipelines

The vast, often tempestuous expanse of the North Sea is more than just a dramatic seascape; it is a colossal, submerged network of arteries that power economies and connect energy resources. These aren’t the arteries of living beings, but rather the intricate web of pipelines that transport vital commodities like oil and natural gas from offshore fields to onshore terminals. For many, the concept of these underwater conduits remains shrouded in a degree of mystery. This article aims to demystify North Sea pipelines, shedding light on their fundamental purpose, the engineering marvels they represent, their operational realities, and the challenges and future outlook that define them.

At their core, North Sea pipelines are sophisticated engineering structures designed for the safe and efficient transfer of hydrocarbons. They are the silent workhorses of the offshore energy industry, playing an indispensable role in bringing the energy that fuels our modern lives from the seabed to our homes and industries. Without them, the extraction of oil and gas from the challenging environments of the North Sea would be logistically impractical, economically unviable, and environmentally far riskier.

The Anatomy of an Offshore Pipeline

The construction and function of these pipelines are far more complex than simply laying a pipe on the seabed. They are meticulously designed, manufactured, and installed systems, each component playing a crucial role in the overall integrity and operational success.

Material Selection: More Than Just Steel

The primary material for most North Sea pipelines is high-strength steel, specifically designed to withstand immense pressures, corrosive environments, and the harsh physical conditions of the seabed. However, it’s not just any steel. Advanced metallurgical processes are employed to ensure the pipe walls possess the necessary tensile strength and resistance to fatigue. Beyond the steel itself, several protective layers are applied. These can include:

• Fusion Bonded Epoxy (FBE): This is a powder coating applied to the exterior of the pipe to provide a barrier against corrosion and abrasion. It’s cured at high temperatures, creating a robust and durable coating.
• Concrete Weight Coating (CWC): While not always present, concrete is often applied to provide negative buoyancy, ensuring the pipeline remains firmly on the seabed and is less susceptible to movement from currents or accidental damage. It also offers a degree of mechanical protection.
• Internal Coatings: To facilitate flow and prevent internal corrosion or wax buildup, internal coatings are also applied. These can be epoxies or other specialized linings.

Diameter and Wall Thickness: Tailored for the Task

The size and thickness of a pipeline are not arbitrary. They are determined by the type and volume of the commodity being transported, the pressure required for efficient flow, and the environmental conditions it will encounter. Smaller diameter pipes might be used for smaller production streams or infield gathering, while larger diameter trunklines are essential for transporting vast quantities of oil and gas over long distances. Similarly, wall thickness is a critical safety factor, calculated to withstand the internal operating pressures and external forces.

Valves and Fittings: The Control and Connection Points

While the pipe itself forms the continuous conduit, a network of specialized valves and fittings are integrated along its length. These are not merely junctions but crucial control points.

• Isolation Valves: These are vital for shutting off sections of the pipeline in case of emergencies, maintenance, or planned shutdowns. They can be remotely operated from platforms or onshore control centers, ensuring rapid response capabilities.
• Pigging Stations: These are entry and exit points for “pigs” – intelligent devices that travel through the pipeline for cleaning, inspection, and maintenance.
• Expansion Loops and Bends: Natural seabed contours and changes in direction require carefully engineered bends and expansion loops to manage thermal expansion and contraction of the pipeline material due to temperature fluctuations in the transported fluid and the surrounding seawater.

The Crucial Role in the Energy Value Chain

North Sea pipelines are not isolated entities; they are integral components of a much larger energy ecosystem. Their existence underpins the entire process of extracting, processing, and distributing hydrocarbons.

From Wellhead to Processing Plant

Once oil and gas are extracted from subsea wells, they are typically transported through smaller diameter flowlines to a nearby offshore platform. These platforms act as initial processing hubs, separating oil, gas, and water. From these platforms, the crude oil and natural gas are then moved via larger trunk pipelines to onshore terminals.

Connecting Offshore Fields to Onshore Infrastructure

The majority of North Sea oil and gas fields are connected to onshore infrastructure via these extensive pipeline networks. This allows for the seamless transfer of these commodities to refineries, gas processing plants, and ultimately, to consumers. Without this direct link, reliance on tanker transport would significantly increase costs, environmental risks, and logistical complexities.

Ensuring Energy Security and Economic Viability

The efficient operation of these pipelines is paramount for maintaining energy security, particularly for the countries bordering the North Sea. They provide a reliable and continuous supply of energy, reducing reliance on volatile global markets. Economically, the cost-effectiveness of pipeline transport makes the development of even marginal offshore fields feasible, contributing significantly to national economies and creating employment opportunities.

For a deeper understanding of the North Sea pipelines and their significance in the energy sector, you can explore the article titled “North Sea Energy Infrastructure: Challenges and Opportunities” available at MyGeoQuest. This article provides insights into the operational dynamics of the pipelines, the geopolitical implications, and the future of energy production in the region.

Engineering the Impossible: The Design and Construction of Offshore Pipelines

Laying a pipe on land is one thing; constructing a robust and functional pipeline system across the often-turbulent seabed of the North Sea is an entirely different proposition, demanding unparalleled levels of engineering ingenuity and precision. The forces of nature—powerful currents, immense water pressure, and unpredictable seabed conditions—present formidable challenges that must be overcome through meticulous design and advanced construction techniques.

The Planning and Route Selection Process

Before a single piece of pipe is laid, an extensive planning and route selection phase takes place. This involves a complex interplay of geological, environmental, and engineering considerations.

Seabed Surveys and Geotechnical Analysis

Detailed surveys of the intended pipeline route are conducted using a variety of technologies.

• Multibeam Echosounders: These systems map the seabed topography in high resolution, identifying any features like canyons, ridges, or existing infrastructure that might pose obstacles or require avoidance.
• Side-scan Sonar: This technology provides acoustic images of the seabed, helping to detect buried objects, wrecks, or anomalies.
• Sub-bottom Profilers: These instruments emit low-frequency sound waves to penetrate the seabed and map subsurface geological layers, identifying the composition and stability of the soil.
• Geotechnical Boreholes: Samples of the seabed sediment are taken and analyzed in laboratories to determine their strength, shear resistance, and potential for liquefaction, which is crucial for assessing stability.

Environmental Impact Assessments

The North Sea is a sensitive ecosystem, and any pipeline project must undergo rigorous environmental impact assessments. These studies evaluate potential impacts on marine life, habitats, and water quality. Mitigation strategies are then developed to minimize any negative effects. This includes considerations for:

• Marine Mammal Disturbance: Noise from construction activities can affect marine mammals, and mitigation measures like acoustic deterrents or time-of-year restrictions are implemented.
• Habitat Protection: Routes are chosen to avoid sensitive seabed habitats, and measures are put in place to minimize seabed disturbance during installation.
• Pollution Prevention: Robust containment systems and emergency response plans are essential to prevent any accidental spills or releases of hydrocarbons.

Hazard Identification and Risk Assessment

Potential hazards along the route are meticulously identified and assessed. This includes:

• Seismic Activity: While the North Sea is not as seismically active as some regions, potential earthquake risks are evaluated.
• Underwater Landslides: Areas with steep slopes are assessed for the risk of landslides, which could damage the pipeline.
• Fishing Activities: The presence of fishing fleets and potential interactions with trawl gear are considered, and sometimes protective measures like rock dumping are employed.
• Existing Infrastructure: The route must carefully navigate around other subsea cables and pipelines to avoid interference or damage.

The Sophistication of Laying Techniques

Once the route is finalized, the physical laying of the pipeline begins, a feat of engineering often performed by specialized vessels.

S-Lay and J-Lay Methods

Two primary methods are employed for offshore pipeline installation, each suited to different water depths and pipeline sizes:

• S-Lay: This is the most common method for shallower to moderate water depths. The pipeline is fed off the stern of a lay vessel in an “S” shape. The vessel moves forward, gradually lowering the pipeline to the seabed. The tensioners on the vessel control the rate of descent and manage the stress on the pipeline.
• J-Lay: This method is used for deeper water and for larger diameter pipelines. The pipe is assembled vertically in a tower on the lay vessel. The pipe then descends in a “J” shape, offering better stability and control in deep water. This method is generally slower than S-lay but provides greater precision.

The Role of Heavy-Lift Vessels and Support Crafts

The colossal nature of pipeline construction necessitates the involvement of a fleet of specialized vessels and support craft.

• Lay Vessels: These are the primary workhorses, equipped with sophisticated pipe-handling equipment, welding stations, and dynamically positioned systems to maintain their position against currents and waves.
• Trenching and Dredging Vessels: In some areas, the seabed may need to be prepared, or a trench dug to bury the pipeline for protection. Specialized trenching equipment, like jet trenchers or mechanical trenchers, are deployed by these vessels.
• Support Vessels: A myriad of smaller vessels provide essential support, including anchor handling, personnel transport, supply of materials, and emergency response.

Underwater Welding and Inspection

The joining of pipeline sections offshore is a critical and highly skilled operation.

• Hyperbaric Welding: For many crucial joints, especially in deep water, welders operate in a hyperbaric environment. This involves enclosing the joint in a chamber filled with a mixture of gases that replicates the surrounding water pressure, allowing welders to perform their tasks in a safe and controlled manner.
• Automated Welding Systems: Increasingly, automated welding systems are being employed, offering greater consistency and speed, particularly for standard pipe joints.
• Non-Destructive Testing (NDT): After welding, the integrity of each joint is rigorously tested using NDT methods like ultrasonic testing and radiography to detect any flaws or defects that could compromise the pipeline’s strength.

The Life of a North Sea Pipeline: Operation, Maintenance, and Monitoring

Once laid and connected, a North Sea pipeline enters its operational phase, a period that can span decades. This phase is characterized by continuous monitoring, routine maintenance, and proactive intervention to ensure the safe and uninterrupted flow of hydrocarbons. The harsh offshore environment and the critical nature of the transported commodities necessitate a vigilant and sophisticated approach to pipeline management.

Continuous Monitoring and Control

The operational integrity of a pipeline is maintained through a sophisticated network of monitoring systems and control centers.

Flow Assurance and Pressure Management

Maintaining optimal flow conditions and managing internal pressures are paramount.

• Flow Meters and Sensors: Throughout the pipeline network, a multitude of sensors continuously measure flow rates, pressure, temperature, and density of the transported fluids. This data is transmitted in real-time to control rooms.
• SCADA Systems: Supervisory Control and Data Acquisition (SCADA) systems are the digital backbone of pipeline operations. They collect data from sensors, visualize it for operators, and allow for remote control of valves and other equipment.
• Thermodynamic Modeling: Sophisticated software models are used to predict and manage the thermodynamic behavior of the oil and gas as they travel through the pipeline, accounting for pressure drops, temperature changes, and potential hydrate formation.

Leak Detection and Emergency Response

The prevention and detection of leaks are of utmost importance.

• Computational Pipeline Monitoring (CPM): This sophisticated software analyzes real-time flow data to detect anomalies that could indicate a leak. It uses mathematical models to simulate normal flow behavior and flag deviations.
• Mass Balance Systems: By comparing the volume of fluid entering a pipeline section with that exiting, discrepancies can highlight potential leaks.
• Emergency Shutdown Systems (ESD): In the event of a detected leak or other critical issue, ESD systems are designed to automatically shut down the pipeline in designated sections, minimizing the amount of potential spillage.
• Onshore Control Centers: Highly trained operators in onshore control centers continuously monitor pipeline performance, analyze data, and make crucial decisions regarding operations and emergency response.

Regular Maintenance and Inspection Regimes

Even with advanced monitoring, regular physical inspections and maintenance are vital to ensure long-term pipeline integrity.

Pigging Operations: The Internal Cleaners

“Pigs” are intelligent devices that travel through the pipeline, performing a variety of essential functions.

• Cleaning Pigs: These are equipped with brushes or scraping elements to remove wax, scale, and debris that can accumulate on the internal walls, reducing flow efficiency and potentially causing corrosion.
• Inspection Pigs (Intelligent Pigs): These are highly advanced devices equipped with sensors to detect and record internal and external pipeline conditions.
• Magnetic Flux Leakage (MFL) Pigs: These detect metal loss due to corrosion or mechanical damage by measuring distortions in a magnetic field.
• Ultrasonic Testing (UT) Pigs: These use sound waves to measure wall thickness and detect pitting or cracks.
• Eddy Current Pigs: These are used to detect surface cracks and flaws.
• Logistics of Pigging: Deploying and retrieving pigs requires specialized pigging stations at various points along the pipeline. The data collected by inspection pigs is analyzed to identify any areas requiring attention.

External Inspections and Corrosion Monitoring

While internal inspections are crucial, external integrity is also continuously monitored.

• Diver Inspections: Divers may be deployed to visually inspect critical sections of the pipeline, particularly around risers (the vertical sections connecting subsea pipelines to platforms) and valve assemblies.
• Remotely Operated Vehicles (ROVs): ROVs equipped with cameras and sonar systems are widely used to inspect the external surface of pipelines, assess the condition of coatings, and check for any external damage or seabed movement.
• Cathodic Protection Monitoring: Pipelines are often protected from external corrosion through cathodic protection systems. Monitoring stations measure the electrical potential of the pipeline to ensure the protection is functioning effectively.

Responding to Challenges and Aging Infrastructure

Pipelines, like any engineered structure, are subject to the effects of time and the environment.

Dealing with Ageing Infrastructure

Many North Sea pipelines have been in operation for several decades. As they age, the risk of degradation can increase.

• Fitness-for-Service Assessments: Rigorous assessments are conducted to determine the remaining operational life of older pipelines, considering factors like corrosion rates, material fatigue, and operational history.
• Rehabilitation and Replacement: Based on these assessments, decisions are made regarding the need for rehabilitation (e.g., internal relining) or complete replacement of sections or entire pipelines.

Mitigating the Impact of Environmental Changes

The North Sea is not static. Changes in currents, seabed conditions, and even the increasing severity of storms can pose challenges.

• Scour Monitoring: Pipelines can be affected by seabed erosion (scour), which can expose them. Monitoring systems help identify areas where scour is occurring, and mitigation measures like rock dumping may be employed.
• Seismic Activity and Landslides: While less common, the risk of seismic events or underwater landslides is continuously assessed, and pipelines are designed to withstand a certain level of disturbance.

The Challenges and Risks Associated with North Sea Pipelines

Despite the advanced engineering and meticulous operational procedures, the North Sea pipeline network is not without its inherent challenges and risks. The sheer scale of the operation, the unforgiving environment, and the valuable commodities being transported combine to create a landscape where vigilance is paramount and potential consequences of failure are significant.

The Harsh and Dynamic Environment

The North Sea is renowned for its challenging weather conditions, which directly impact offshore operations.

Storms and Waves

Severe storms with high winds and massive waves can disrupt offshore construction, maintenance activities, and even impact the stability of existing pipelines. While pipelines are designed to withstand these forces, extreme events can still pose a threat.

• Operational Shutdowns: During periods of severe weather, operations on platforms and lay vessels are often temporarily suspended for safety reasons, leading to potential delays in production and maintenance.
• Seabed Instability: Intense wave action and currents can lead to seabed erosion and instability, which could potentially affect the integrity of buried or unsupported pipelines.

Extreme Pressures and Temperatures

The deep waters of the North Sea subject pipelines to immense hydrostatic pressure, while the transported hydrocarbons can experience significant temperature variations.

• Hydrostatic Pressure: The weight of the water column exerts enormous pressure on subsea structures. Pipelines must be designed with sufficient wall thickness and material strength to withstand these crushing forces.
• Thermal Expansion and Contraction: Fluctuations in the temperature of the transported fluids and the surrounding seawater can cause pipelines to expand and contract. This necessitates the incorporation of expansion loops and careful route planning to accommodate these movements without causing undue stress.

The Ever-Present Threat of Corrosion and Erosion

The marine environment is inherently corrosive, and the constant flow of fluids can lead to erosion.

Internal Corrosion

The oil and gas transported often contain water, dissolved salts, and acidic components, which can lead to internal corrosion of the pipeline walls.

• Inhibitor Injection: Chemical inhibitors are often injected into the pipeline to create a protective film on the inner surface, slowing down the corrosion process.
• Regular Cleaning: Pigging operations are crucial for removing deposits that can accelerate corrosion.

External Corrosion

The saltwater environment, coupled with potential damage to protective coatings, can lead to external corrosion.

• Coating Integrity: The integrity of external coatings like FBE and concrete is critical. Any damage can expose the steel to the corrosive seawater.
• Cathodic Protection: As mentioned previously, cathodic protection systems are a vital defense against external corrosion, but they require regular monitoring and maintenance.

Erosion

The abrasive nature of the transported fluids, especially if they contain sand or other particulates, can lead to erosion of the internal pipeline walls over time. This is particularly a concern in high-flow areas or where there are significant changes in direction.

Third-Party Interference and Accidental Damage

While efforts are made to avoid them, human activities in the North Sea can pose a significant risk to pipelines.

Fishing Activities

Fishing trawls, particularly bottom trawling, can snag and damage subsea pipelines, especially those that are buried shallowly or are not adequately protected.

• Pipeline Marking and Protection: Pipelines are marked on nautical charts, and in high-risk fishing areas, they may be buried deeper or protected with rock dumping.

Anchor Dropping

The dropping of anchors from vessels, especially during construction or maintenance operations, can cause direct impact damage to pipelines.

• Route Planning to Avoid Anchoring Zones: Pipeline routes are carefully planned to avoid known anchoring areas.

Other Subsea Infrastructure

The North Sea is a busy subsea environment with numerous cables and pipelines. Accidental damage during the installation or maintenance of other infrastructure can affect existing pipelines.

• Coordination and Communication: Close coordination and communication between operators of different subsea assets are crucial to prevent such incidents.

The Consequences of a Pipeline Failure

A rupture or failure in a North Sea pipeline can have severe and far-reaching consequences.

Environmental Impact

The release of oil and gas into the marine environment can cause significant ecological damage.

• Oil Spills: Oil spills can devastate marine ecosystems, impacting seabirds, marine mammals, and fish populations. Cleanup operations are complex, costly, and often have limited success in the open sea.
• Gas Leaks: While less visible than oil spills, significant gas leaks can contribute to greenhouse gas emissions and pose a fire or explosion risk.

Economic Repercussions

Pipeline failures can lead to substantial economic losses.

• Production Downtime: A failed pipeline means the immediate cessation of oil and gas flow, leading to lost revenue for operators and potential supply shortages for consumers.
• Repair Costs: The cost of repairing damaged subsea pipelines is immense, involving specialized vessels, equipment, and highly skilled personnel.
• Regulatory Fines and Legal Liabilities: Companies can face significant fines and legal liabilities due to environmental damage and operational failures.

The North Sea pipelines play a crucial role in the energy supply chain, connecting various oil and gas fields to mainland Europe. For those interested in a deeper understanding of this topic, you can explore a related article that delves into the intricacies of these pipelines and their impact on the energy market. This insightful piece can be found here, providing valuable information for anyone looking to learn more about the significance of the North Sea’s infrastructure.

The Future of North Sea Pipelines: Sustainability, Innovation, and New Frontiers

Pipeline Name	Operator	Length (km)	Start Point	End Point
Forties Pipeline System	BP	169	Forties Unity platform	Cruden Bay terminal
Beryl Pipeline	Apache Corporation	216	Beryl Alpha platform	Flotta terminal
Brent Pipeline System	Shell	154	Brent Alpha platform	Sullom Voe terminal

The North Sea pipeline network, a testament to engineering prowess, is not static. It is an evolving system, facing the dual pressures of a changing energy landscape and the imperative for greater sustainability. The future of these underwater arteries lies in innovation, adaptation, and the exploration of new frontiers, all while striving to minimize their environmental footprint.

The Transition to a Greener Energy Landscape

As the world pivots towards renewable energy sources, the role of traditional hydrocarbon pipelines is undergoing re-evaluation. However, their infrastructure and expertise will likely play a crucial role in the emerging energy economy.

Hydrogen Transport

The development of hydrogen as a clean energy carrier presents a significant opportunity for repurposing existing pipeline infrastructure.

• Hydrogen Blending: Initially, pipelines designed for natural gas may be used to transport hydrogen blended with natural gas, gradually increasing the hydrogen concentration as infrastructure and technology evolve.
• Dedicated Hydrogen Pipelines: In the longer term, the construction of dedicated hydrogen pipelines, or the significant modification of existing ones, will be necessary. This requires materials and designs that can withstand hydrogen embrittlement, a phenomenon where hydrogen can weaken steel.
• Storage and Distribution: Existing pipeline networks could also form the backbone of hydrogen storage and distribution systems, connecting production facilities to end-users.

Carbon Capture, Utilization, and Storage (CCUS)

CCUS technologies are vital for decarbonizing hard-to-abate industrial sectors. North Sea pipelines are poised to play a critical role in transporting captured CO2.

• CO2 Pipelines: Specialized pipelines are being designed and implemented to transport CO2 from capture sites to offshore geological storage sites in the North Sea. These pipelines require materials that can withstand the corrosive properties of supercritical CO2.
• Existing Infrastructure Adaptation: The potential exists for adapting existing gas pipelines for CO2 transport, although careful assessment and modification will be required to ensure safety and integrity.

Technological Advancements and Smart Pipelines

Continuous innovation in pipeline technology promises to enhance efficiency, safety, and environmental performance.

Advanced Inspection and Monitoring Techniques

The development of more sophisticated inspection tools and real-time monitoring systems will be crucial.

• Artificial Intelligence (AI) and Machine Learning (ML): AI and ML algorithms are increasingly being used to analyze vast amounts of pipeline data, predict potential failures before they occur, optimize maintenance schedules, and improve leak detection capabilities.
• Digital Twins: The creation of “digital twins” – virtual replicas of physical pipelines – will allow for real-time simulation of operational scenarios, stress testing, and predictive maintenance without impacting the physical asset.
• Autonomous Inspection Systems: The development of autonomous underwater vehicles (AUVs) capable of conducting inspections with minimal human intervention will further enhance efficiency and reduce risk.

Improved Materials and Coatings

Research into advanced materials and coatings is essential for extending pipeline life and improving their performance in challenging environments.

• Corrosion-Resistant Alloys: The development of new alloys with enhanced resistance to corrosion and hydrogen embrittlement will be critical for both hydrocarbon and future energy transport.
• Self-Healing Coatings: The concept of self-healing coatings, which can automatically repair minor damage, is an area of active research that could significantly improve pipeline longevity.

Exploring New Frontiers and Decommissioning Challenges

The North Sea’s energy landscape is not solely about existing infrastructure; it also involves the responsible management of its future and the decommissioning of its past.

Ultra-Deepwater and Arctic Exploration

While the North Sea is a mature basin, there are still frontiers for exploration, including ultra-deepwater areas and potentially Arctic regions. These would require even more advanced pipeline technologies to withstand extreme pressures and cold temperatures.

The Challenge of Decommissioning

As fields are depleted, the safe and environmentally responsible decommissioning of North Sea pipelines becomes a significant undertaking.

• Removal vs. Leaving in Place: Decisions regarding whether to remove subsea pipelines or leave them in place on the seabed are complex, involving environmental, safety, and economic considerations.
• In-place Decommissioning: In many cases, pipelines are cleaned and left in place to minimize seabed disturbance, but their integrity must be assured for the long term.
• Recycling and Material Reuse: Efforts are underway to maximize the recycling and reuse of materials from decommissioned pipelines, contributing to a more circular economy.

The story of North Sea pipelines is one of continuous evolution. From their origins as the arteries of the oil and gas industry, they are now poised to become conduits for the energy of the future. The challenges are significant, but the ongoing drive for innovation and sustainability ensures that these vital subsea networks will continue to play a critical role in powering our world, albeit in increasingly diverse and responsible ways.

FAQs

What are North Sea pipelines?

North Sea pipelines are a network of underwater pipelines that transport oil and gas from offshore drilling platforms in the North Sea to onshore facilities for processing and distribution.

How are North Sea pipelines constructed?

North Sea pipelines are typically constructed using steel pipes that are laid on the seabed. The pipes are welded together and then lowered into the water using specialized vessels. The pipelines are then buried to protect them from damage and to minimize environmental impact.

What is the purpose of North Sea pipelines?

The primary purpose of North Sea pipelines is to transport oil and gas from offshore drilling platforms to onshore facilities. This allows for the extraction of valuable resources from the North Sea and their distribution to consumers.

How are North Sea pipelines maintained?

North Sea pipelines require regular maintenance to ensure their safe and efficient operation. This includes inspections for corrosion and damage, as well as cleaning and repair activities as needed. Specialized vessels and equipment are used for these maintenance activities.

What are the environmental considerations of North Sea pipelines?

The construction and operation of North Sea pipelines can have environmental impacts, including disturbance to marine habitats and the risk of oil spills. Measures are taken to minimize these impacts, such as burying pipelines to reduce disturbance and implementing spill response plans to mitigate the risk of accidents.
